Ultrafine Pulverizer Machine For Pharmaceutical 60 - 300 Mesh

Name: Ultrafine Pulverizer Machine For Pharmaceutical 60 300 Mesh
Brand: Sanhe
Price: 1 USD

China Ultrafine Pulverizer Machine For Pharmaceutical 60 - 300 Mesh factory

Brand Name : Sanhe

Model Number : Ultrafine pulverizer machine

Certification : ISO9001:2015, CE

Place of Origin : Suzhou

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 90 Sets Per Month

Delivery Time : Negotiable

Packaging Details : Wood pallet , The pallet size is customized according to different products

Product Name : Ultrafine pulverizer machine

Customized Module : Machine color/Machine diameter/Size of Cover opening/Machine height

Production Capacity : 90 Sets Per Month

Usege : Chemical, food, ceramics, power station, metallurgy, mining, building materials and other industries

Contact Now

Ultrafine Pulverizer Machine

Ultrafine pulverizer machine is a new type fine pulverizer without sieve, used to crush material into very fine powder (60-300mesh), which is used widely in pharmaceutical,chemical and food industries etc.

WORKING PRINCIPLE:

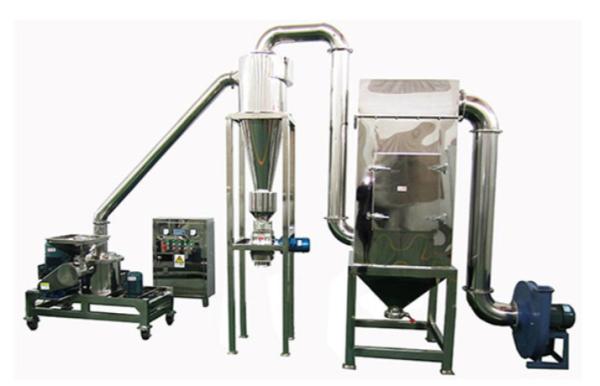

Ultrafine pulverizer machine consists of pulverizing system, grading system, cyclone separating system, dust collecting system and electric control box.Feeding material via hopper by screw conveyor. The material is sheared and pulverized by high speed cutters and liner, then pulverized material moves to the cyclone separator and discharge, dust is filtrated and collected by the filter cylinder.

FEATURES:

You can adjust the output size by adjusting the speed of the grading wheel.There is no sieve inside the chamber. Easier to use than the pulverizers with a sieve.

Continuous working is suitable for industrial production.

There is no dust flying during production.

We use stainless steel to produce micro mill, which assures final products healthy and clean.

We can change the position of the connecting pipes according to the space of customer’s workshop.

Can be equiped with water cooling system to cool down the temperature inside the crushing chamber to keep working continuously.
